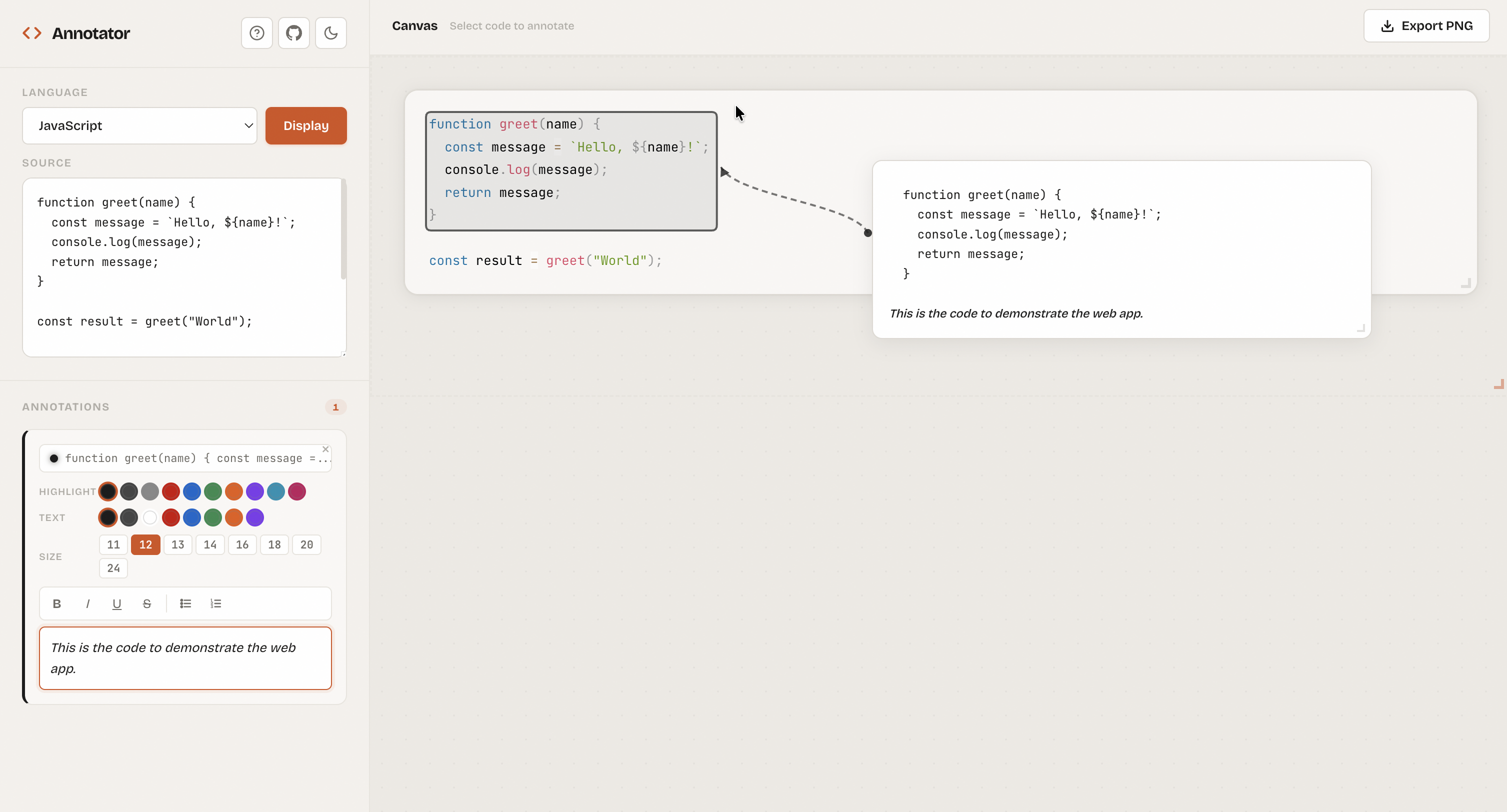

Code Annotator — Annotated Code Snippet Generator

Create beautiful, annotated code snippets for documentation, presentations, and teaching — entirely in the browser.

Overview

Code Annotator is a fully client-side tool for creating annotated code snippets. Select any text in your code, attach annotation cards with rich formatting, position them freely on a canvas, and export the result as a PNG — all without leaving the browser.

The Problem

Explaining code visually is surprisingly tedious:

Screenshots lose syntax highlighting when annotated in image editors
Presentation tools don't understand code formatting
Existing annotation tools require server-side processing or subscriptions
Combining syntax highlighting, arrows, and labels in one workflow is painful

I wanted a single tool where I paste code, select text, write annotations, and export — done.

Features

Syntax Highlighting — 19 languages supported via Prism.js
Text Selection Annotations — Select any text in your code to create annotation cards
Rich Text Editing — Bold, italic, underline, strikethrough, and lists
Customizable Styling — Highlight color, text color, and font size per annotation
Drag & Drop — Freely position annotation cards and arrows on the canvas
Resizable Elements — Resize code block, annotation cards, and export area
Dark / Light Theme — Toggle to match your preference
PNG Export — Preview and download your annotated code as a PNG image
Privacy First — Runs entirely in the browser; no data leaves your machine

Tech Stack

Runtime: Cloudflare Workers
Syntax Highlighting: Prism.js
Rendering: HTML5 Canvas
Rich Text: Custom editor with inline formatting
Export: Canvas-to-PNG pipeline

How It Works

┌──────────────────────────────────────────┐
│  Code Input (Prism.js syntax highlight)  │
├──────────────────────────────────────────┤
│  Select text → Create annotation card    │
│  ┌────────────────┐                      │
│  │ Annotation     │◄── Rich text editor  │
│  │ with arrow     │    (bold, italic...) │
│  └────────────────┘                      │
├──────────────────────────────────────────┤
│  Canvas layer: drag, resize, position    │
├──────────────────────────────────────────┤
│  Export → PNG (client-side)              │
└──────────────────────────────────────────┘

Paste or type code — Prism.js applies syntax highlighting for the selected language
Select text — Highlight any span of code to anchor an annotation
Write annotations — Rich text cards with customizable colors and arrows
Arrange — Drag and resize everything on the canvas until it looks right
Export — One-click PNG download at the resolution you need

Example Output

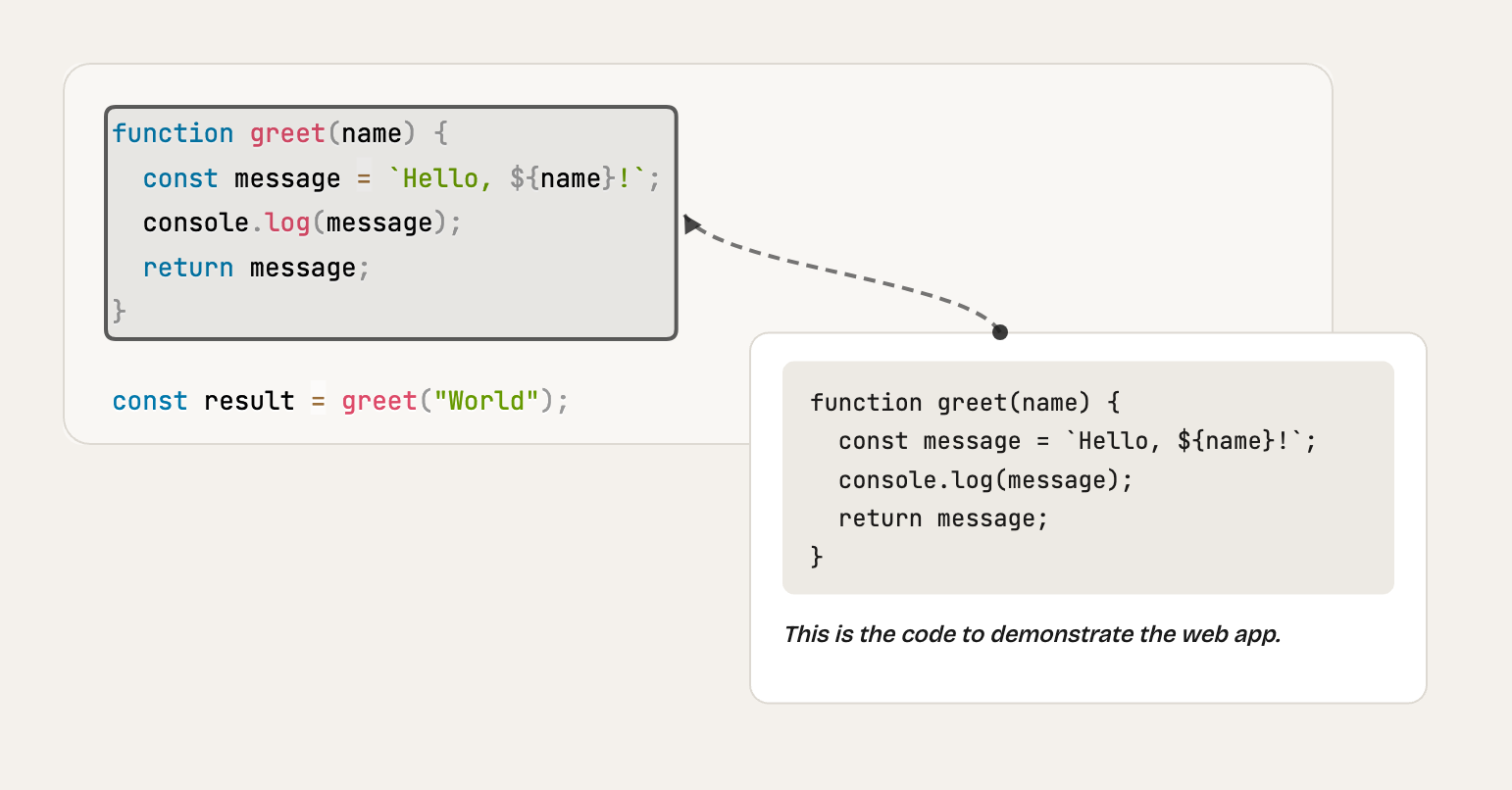

Example annotated code output

Design Decisions

Zero backend — Everything runs client-side. No accounts, no uploads, no tracking
Canvas-based export — Guarantees pixel-perfect output across browsers
Cloudflare Workers deployment — Fast edge delivery with minimal infrastructure
